Vendor Customizations

Onfido

On using Onfido IDV with OneSDK, you can pass various configurations on runtime to fits your use-cases.

  sdkVersion?: string;
  theme?: 'light' | 'dark';
  customUI?: OnfidoCustomUIProps;
  fallback?: 'standard' | 'video';
  crossDevicePolicy?: 'force' | 'disable';
  _crossDeviceLinkMethods?: Array<OnfidoShareOption>;
  biometricsVariant?: RequestedVariant;
  useOneStep?: boolean;
  showExitButton?: boolean;

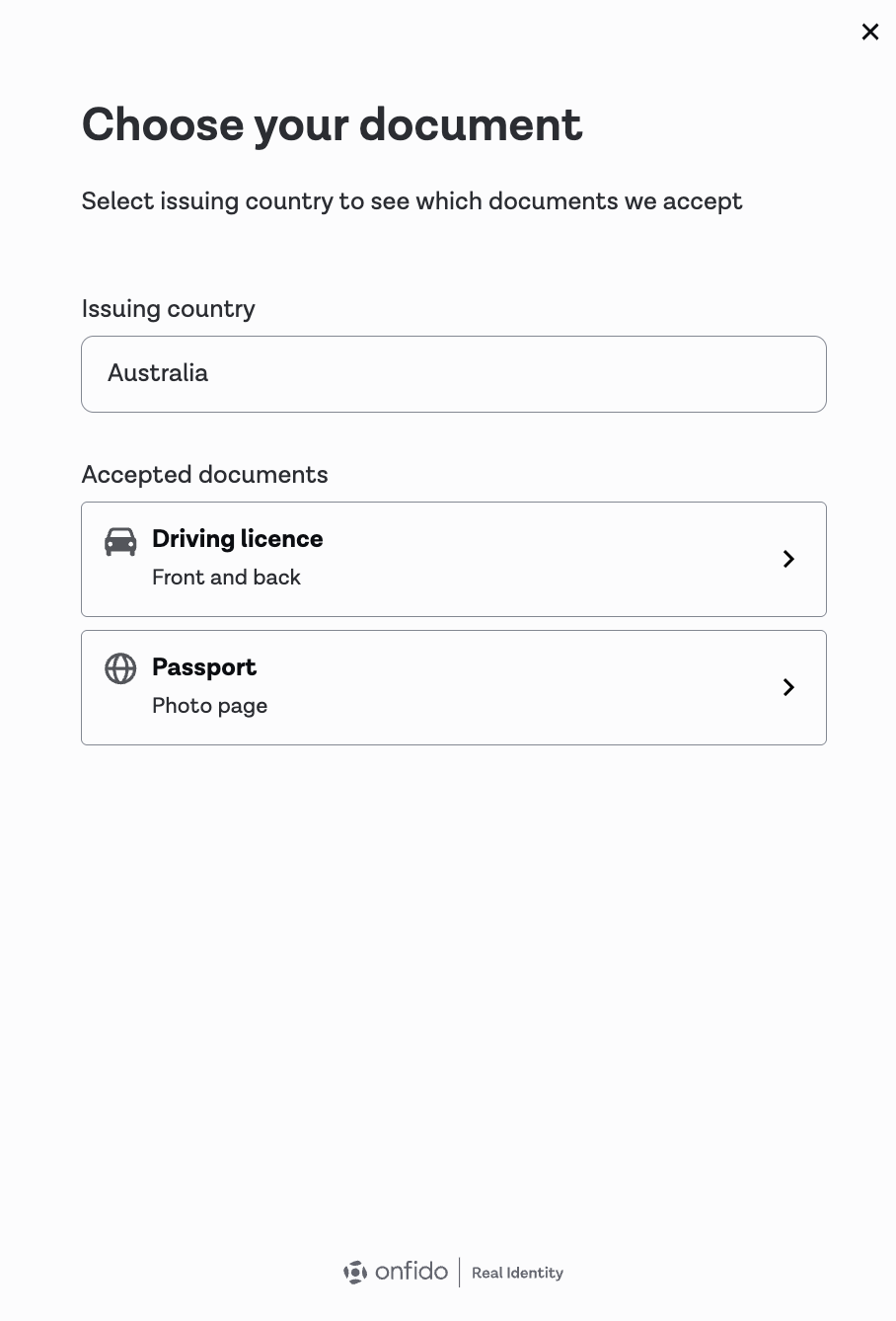

Enabling Exit Button

The showExitButton property (which defaults to false) is used for displaying the exit button in the Web SDK.

If clicked, a vendor_event event OCR:ONFIDO:ON_USER_EXIT will be emitted. To watch this event, you can use

  idv.on('vendor_event', (obj) => {
    console.log("vendor_event", obj.eventName)
  });

To pass a callback upon clicking exit button, we can use onUserExit method.

Selecting Onfido SDK Version

By default OneSDK uses Onfido v12 to ensure backward compatibility and seamless integration for existing users. This means no changes are required for customers currently using Onfido v12—your implementation will continue to work as expected. For those who wish to take advantage of the new features and improvements in Onfido v14, switching is easy. You can configure the desired SDK version programmatically through a simple code setting. This added flexibility allows your application to adapt to evolving needs while maintaining a consistent integration experience. Refer to our documentation for details on how to enable Onfido v14 support in your project.

  const oneSdk = await OneSdk({
    // Session object containing authentication details
    session: sessionObjectFromBackend,
    // Set environment mode
    mode: "production",
    recipe: {
      idv: {
        // Configure accepted document types and countries
        documents: [
          {
            type: 'PASSPORT',
            countries: ['NZL'], // New Zealand passports only
          },
          {
            type: 'DRIVERS_LICENCE',
            countries: ['NZL'], // New Zealand driver's licenses only
          },
        ],
        // Specify Onfido as the IDV provider
        provider: {
          name: "onfido",
          sdkVersion: "14",
        },
      }
      ocr: {
        provider: {
          name: 'onfido',
          sdkVersion: '14'
        },
      },
      biometrics: {
        provider: {
          name: 'onfido',
          sdkVersion: '14'
        },
      },
    }
  });

Configuring Accepted Documents and Countries

Using Onfido, we can set document and country selection on document capture part of IDV. The customization options available all relate to the country and document type selection screen. By default, the selection screen is shown with the country selection being empty. Depending on the customization options defined in this step, either the country or document type selection screens might not be shown:

The country selection screen will not be shown if only 1 country is selected or if only passports are allowed
The document selection screen will not be shown if only 1 document type is specified

Code Example
Output

During the initialisation of OneSdk instance, you can specify accepted documents & countries.

const oneSdk = await OneSdk({
  // Session object containing authentication details
  session: sessionObjectFromBackend,
  // Set environment mode
  mode: "production",
  recipe: {
    idv: {
      // Configure accepted document types and countries
      documents: [
        {
          type: 'PASSPORT',
          countries: ['NZL'], // New Zealand passports only
        },
        {
          type: 'DRIVERS_LICENCE',
          countries: ['NZL'], // New Zealand driver's licenses only
        },
      ],
      // Specify Onfido as the IDV provider
      provider: {
        name: "onfido"
      }
    }
  }
});

// Initialize the IDV flow
const idv = oneSdk.flow("idv");
// Mount the IDV component to specified HTML element
idv.mount("#html-element");

documents is an array of object, where:

  // Type definition for OCR configuration options
  type OCRRecipeOptions = {
    // Optional array of accepted document types and countries
    documents?: Array<{
      type: DocumentType;     // Document type enum value
      countries?: Array<string>; // ISO country codes
    }>;
    // Provider configuration
    provider: {
      name: 'onfido',  // Currently only supports Onfido
    }
  }

  // Supported document type options
  enum DocumentType = {
    PASSPORT = 'PASSPORT'           // Standard passports
    NATIONAL_HEALTH_ID = 'NATIONAL_HEALTH_ID'  // Health ID cards
    NATIONAL_ID = 'NATIONAL_ID'     // National ID cards
    DRIVERS_LICENCE = 'DRIVERS_LICENCE' // Driver's licenses
  }

For example, if you attempt to set different countries for different document types like this:

      documents: [
        {
          type: 'PASSPORT',
          countries: ['NZL'], // New Zealand passports
        },
        {
          type: 'DRIVERS_LICENCE',
          countries: ['SGP'], // Singapore driver's licenses - this will cause fallback
        },
      ],

Onfido will fallback to displaying the selection screen for the complete list of documents supported within the selection screens.

Style Customization

Onfido provides styling capabilities to customize the UI to be more suitable for your application. To apply custom styling, you can put the following style config to customUI in the provider object.:

type OnfidoCustomUIProps = {
  borderRadiusButton?: string;
  borderStyleSurfaceModal?: string;
  fontWeightBody?: number;
  fontSizeBody?: string;
  fontSizeSubtitle?: string;
  fontSizeTitle?: string;
  colorBackgroundSurfaceModal?: string;
  colorBackgroundIcon?: string;
  colorBorderLinkUnderline?: string;
  colorBackgroundLinkActive?: string;
  colorBackgroundLinkHover?: string;
  colorBackgroundDocTypeButton?: string;
  colorContentBody?: string;
  colorContentTitle?: string;
  colorContentSubtitle?: string;
  colorContentButtonPrimaryText?: string;
  colorBackgroundButtonPrimary?: string;
  colorBackgroundButtonPrimaryHover?: string;
  colorBackgroundButtonPrimaryActive?: string;
  colorContentButtonSecondaryText?: string;
  colorBackgroundButtonSecondary?: string;
  colorBackgroundButtonSecondaryHover?: string;
  colorBackgroundButtonSecondaryActive?: string;
  colorContentLinkTextHover?: string;
  colorBorderDocTypeButton?: string;
  colorBackgroundDocTypeButtonHover?: string;
  colorBackgroundDocTypeButtonActive?: string;
  colorContentDocTypeButton?: string;
  colorIcon?: string;
  colorContentInfoPill?: string;
  colorBackgroundInfoPill?: string;
  colorBackgroundSelector?: string;
  colorInputOutline?: string;
  colorContentButtonTertiaryText?: string;
  colorContentInput?: string;
  colorBackgroundInput?: string;
  colorBorderInput?: string;
}

Please refer to Onfido’s customUI styling options for supported styling keys.

For Onfido 14, there is a new theme options to be set in the provider object. The options are light and dark. The default value is light. Here is an example of how to apply custom styling:

  const oneSdk = await OneSdk({
    // Session object containing authentication details
    session: sessionObjectFromBackend,
    // Set environment mode
    mode: "production",
    recipe: {
      idv: {
        // Configure accepted document types and countries
        documents: [
          {
            type: 'PASSPORT',
            countries: ['NZL'], // New Zealand passports only
          },
          {
            type: 'DRIVERS_LICENCE',
            countries: ['NZL'], // New Zealand driver's licenses only
          },
        ],
        // Specify Onfido as the IDV provider
        provider: {
          name: "onfido",
          sdkVersion: "14",
        }
      },
      ocr: {
        provider: {
          name: 'onfido',
          sdkVersion: '12',
          customUI: {
            colorBorderInput: "#FF0000", // you can use hex or rgb
            // any other style config here
          },
        },
      },
      biometrics: {
        provider: {
          name: 'onfido',
          sdkVersion: '14',
          theme: 'dark', // or 'light' (default is 'light')
          customUI: {
            colorBorderInput: "rgb(255, 0, 0)", // you can use hex or rgb
            // any other style config here
          },
        },
      },
    }
  });

Error Messages and Handling

To handle corner-cases during IDV with Onfido, we can utilise various events emitted from OneSDK.

idv.on('detection_complete', () => {
  // Onfido has finished the IDV process
});

idv.on('session_interrupted', (payload) => {
  // User has clicked the exit button.
  // This event is getting emitted from onUserExit
  /*
    payload: {
      eventName: 'USER_EXITED',
      reason: string,
      module: 'IDV'
    }
  */
});

idv.on('error', (payload) => {
  // Onfido SDK has thrown an error
  // Refer to "Errors from Onfido" sub-chapter for each breakdowns of vendor errors
});

Errors from Onfido

OneSDK utilises Onfido’s onError method to emit error messages sent over from the provider.

Error Message	Meaning	How to Handle
`invalid_token`	Onfido IDV token is invalid	Re-generate the IDV token, by remounting the component itself.
`expired_token`	Onfido IDV token is invalid	Re-generate the IDV token, by remounting the component itself.
`expired_trial`	The trial period is expired.	Onfido is using trial. This is an unexpected error. Please contact FrankieOne if you’re seeing this error message.
`geoblocked_request`	The request is not allowed from this location.	End-user is not allowed to use Onfido, probably because it’s geoblocked. Try to turn off your VPN, or contact FrankieOne for more details.
`permissions_unavailable`	Unable to retrieve or access required user permissions	This error will be returned if the SDK was unable to access or request the necessary permissions. This may occur when the Web SDK is loaded within a webview or other custom browsers. Try to use another browser
`unsupported`	This error will be returned when the a module is not supported in the current environment.	This feature is not available. Please check our documentations for further information, or contact FrankieOne.
`unsupported_feature`	The feature is no longer supported.	This feature is no longer supported. Please check our documentations for further information, or contact FrankieOne.
`invalid_sdk_parameter`	This error will be returned when the SDK is initialized with invalid parameters.	Onfido was initiated with wrong parameter, please check again.
`unsupported_sdk_version`	This error will be returned when the workflow is not supported by the SDK version.	Onfido SDK is not right, please check again.
`no_camera`	This error will be returned when the camera is not available and no other capture method is available.	This entity has not given their camera access or doesn’t have any camera on their device.
`user_consent_denied`	The user has declined the consent.	This entity has not given their consent.

Incode

Style Customization

OneSDK use Incode low code approach. to customize the appearance of the Incode you have to define a custom CSS and our support team can help you to apply the CSS in Incode portal.

Please refer to Incode’s theming documentation for more details on customizing the appearance.

Daon

Style Customization

To customize the appearance of the Daon, you have to contact our support team. here are customizable options that Daon provides:

Custom Colors

General - Is the overarching theme.
Buttons - Reflect the buttons that appear.
Text - The text on the page.
Input - Will affect elements such as the search boxes where an end-user can enter values.
Country Selection - Enables users to configure the color scheme for the country selection screen.
Document Selection - Enables users to configure the color scheme for the document selection screen.
Document Capture - Enables users to configure the color scheme for the document capture screen.
Face Capture - Enables users to configure the color scheme for the face capture screen.
Header - Sets the color scheme for pager headers.
Stepper - Sets the color scheme of the left-side list of steps that appears when completing the process via desktop.
Progress Bar - Represents the color of the progress bar.
Other - Sets the color of the icons that appear on the intro screen and preview borders.

Icons

Logo - The main logo that will be displayed at the top of the app page.
Mobile Switch Icon - The icon that will appear on the ‘Switch to your phone’ step.
Consent Icon - The icon that will appear on the ‘Consent’ step.
Face Capture Icon - The icon that will appear on the ‘Selfie’ step.
Document Capture Icon - The icon that will appear on the document capture screen.
Additional Documents Icon - The icon that will appear on the additional document capture screen.
Custom Form Icon - The icon that will appear on the custom form screen.

Fonts

Regular Font - The font style used for general text that is displayed to the end user.
Medium Font - The font style used for medium font such as sub-titles.
Bold Font - The font style used for bold font such as headings.

Media

Themes enable users to upload custom images that will appear on the various capture instructions screens. Supported file types include: .jpg, .png, .jpeg, .svg, .gif, .mp4, and .webm. All files have a maximum size of 5MB.

Document Capture Instructions Front - Sets the image that will appear on the front document capture instructions screen.
Document Capture Instructions Back - Sets the image that will appear on the back document capture instructions screen.
Face Capture Instructions - Sets the image that will appear on the face capture instructions screen screen.
Manual Capture Instructions Front - Sets the image that will appear on the front manual capture instructions screen.
Manual Capture Instructions Back - Sets the image that will appear on the back manual capture instructions screen.
Switch To Mobile Waiting - Configure the image that appears on the desktop application while the end-user is directed to complete the flow on mobile.
Processing Screen Image Front - Sets the image that will appear during the front facing processing capture screen.
Processing Screen Image Back - Sets the image that will appear during the back facing processing capture screen.
